Description

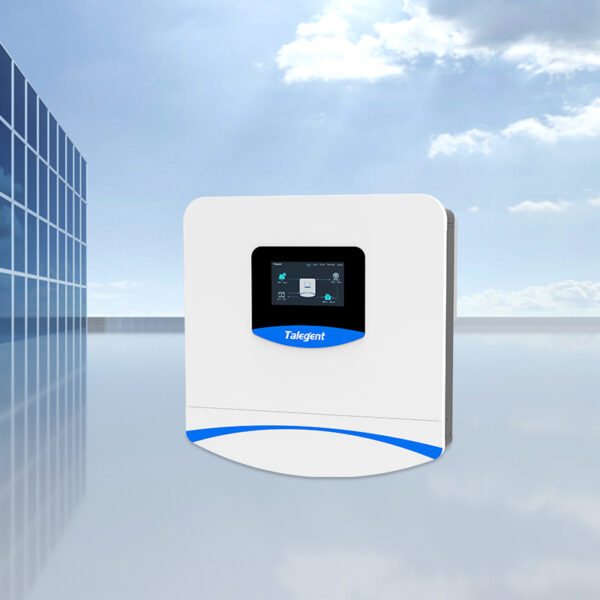

The Heliogen 7–7.6kW Inverter is a powerful, all-in-one hybrid solar inverter designed to integrate solar, battery, and grid power seamlessly. With a maximum recommended PV input of 10800W and a nominal voltage of 380V, this inverter features a wide MPPT voltage range of 120V–550V, two independent MPP trackers, and supports up to 20A current per tracker, ensuring optimal energy harvesting. It provides a robust AC output of 7600VA, supporting 230V/240V AC at 50/60Hz with a maximum output current of 34A, and offers single-phase AC connection. The inverter includes 6000VA standby AC output capacity and supports simultaneous power delivery and battery charging/discharging, ideal for both grid-tied and off-grid applications.

Battery integration is highly versatile with support for lithium and lead-acid batteries within a 42–58V range, recommended at 52V. It allows charging/discharging up to 120A/120V and a continuous power transfer of 6000VA. Designed for high efficiency, the Heliogen 7 achieves a max efficiency of 97.5% with a European weighted efficiency of 97.2% and MPPT tracking efficiency of 99.9%.

For protection and safety, it includes multiple features like DC reverse polarity protection, surge protection, ground fault and short-circuit protection, grid monitoring, anti-islanding, and residual-current monitoring. With an IP20 environmental rating, it operates safely in ambient temperatures from -25°C to +60°C (up to 45°C without derating) and altitudes up to 4000m. Self-consumption remains below 10W, and it operates quietly at ≤25dB(A).

Physically, the inverter measures 505×398×188mm and weighs 33.5kg. It features natural cooling, terminal block AC connection, and copper bar battery terminals. The user interface includes a responsive LCD screen with button and LED indicators. Communication options are extensive, including RS485/USB/CAN/Wi-Fi/GPRS interfaces, and Wi-Fi/GPRS is included as standard. The product comes with a 5-year warranty extendable to 10 years, ensuring long-term peace of mind.

Fully compliant with IEC and EMC standards, the Heliogen 7–7.6kW Inverter is the ideal choice for smart solar power systems in residential or commercial environments demanding performance, protection, and flexibility.
